The UN-Series can cover the complete urinalysis workflow but also offers you maximum flexibility in setting up the workflow of your choice. Because of its modularity, you can configure your solution to cover only the parts that you require.

Whatever configuration you start with, you can flexibly up- or downscale your UN-Series solution at any time. Up to nine modules can be connected in one fully automated line. All configurations are available as benchtop models or with wagons. You can add entry and exit modules to load more racks on the system, letting you handle more sample tubes at a time.

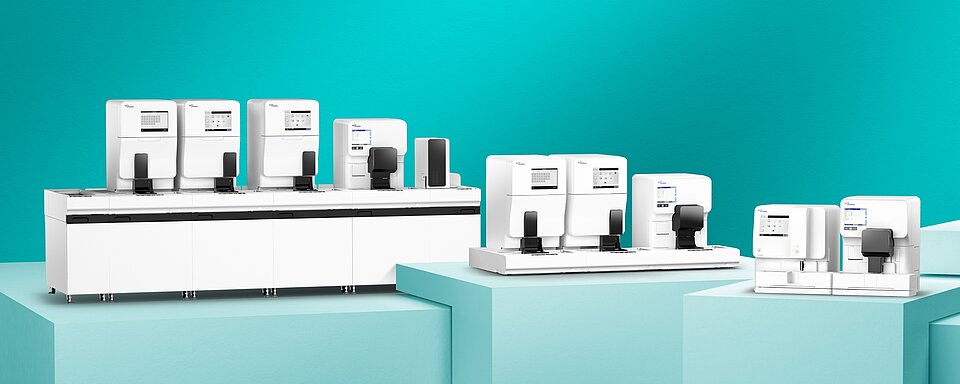

Here is a selection of different analyser concepts to fit your lab’s demands:

Microbiology labs

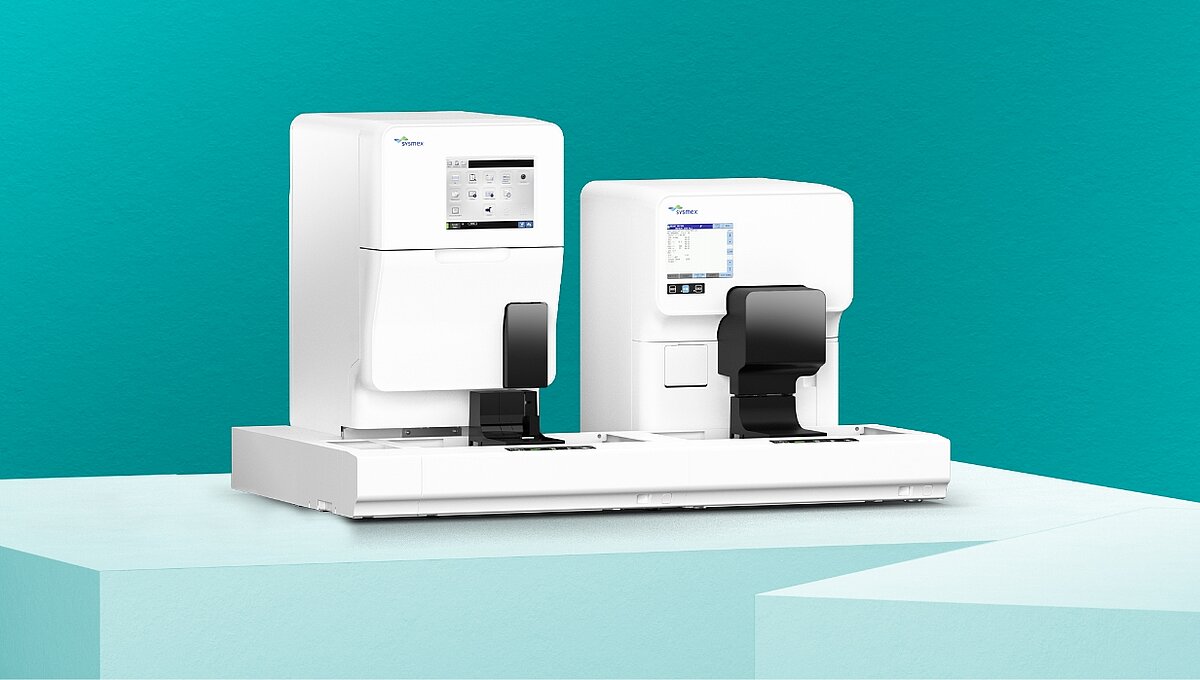

UF-4000/UF-5000 and UD-10

The UD-10, our digital imaging device, and the UF-4000 or UF-5000 Fully Automated Urine Particle Analyser work together to optimise the workflow of your microbiology lab. Supporting the visualization and archiving of all cell types, the UD-10 can be added as an option to the UF-4000 or UF-5000. This configuration excels at differentiating positive and negative bacteriuria samples and rapidly identifies the latter, reducing the number of negative samples that unnecessarily undergo further testing.

Biochemistry labs

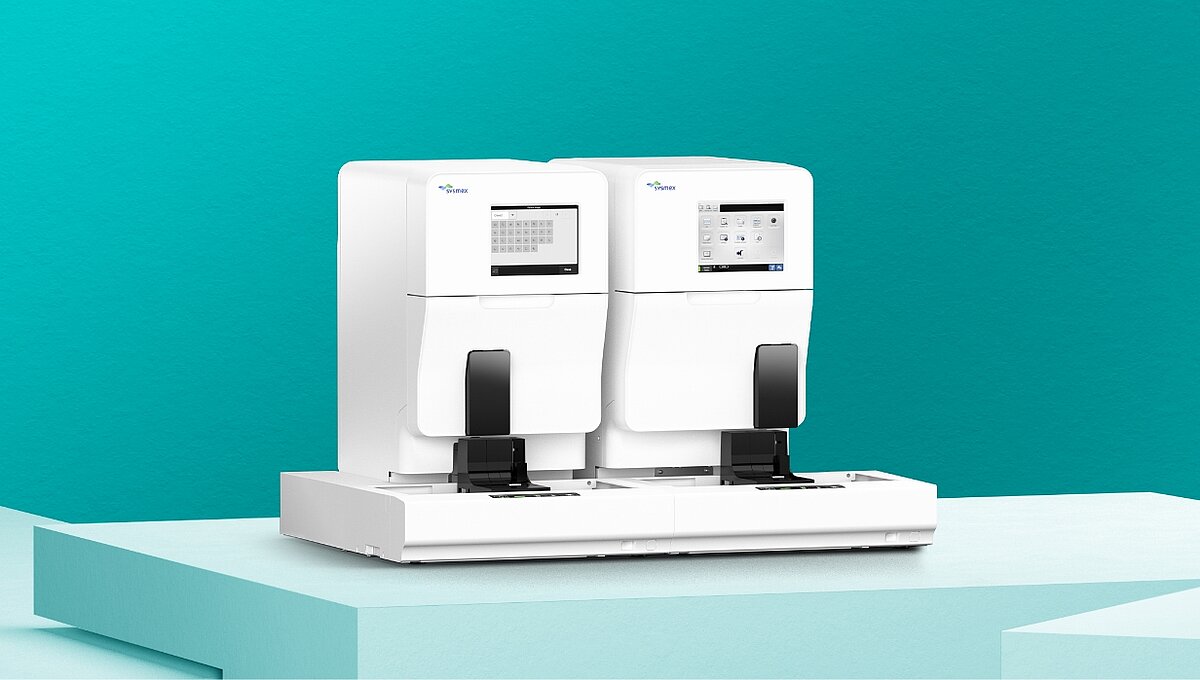

UC-3500 and UF-4000/UF-5000

Combining the UC-3500 Fully Automated Urine Chemistry Analyser with our particle analysers is an ideal setup for your biochemistry lab. Providing routine test strip screening, including for albumin and creatinine, the UC-3500 uses a dedicated rule set to automatically determine whether a sample requires additional testing with the UF-series. The UF-4000 or UF-5000 then use a rigorous range of 32 parameters to guarantee a comprehensive particle analysis.

UC-3500 with UF-4000/UF-5000 and UD-10

In this enhanced option for your biochemistry lab, the UC-3500 and UF-series are supplemented by the UD-10 to assist in cases that require more investigation of certain particles.

Small to medium lab segments

UC-3500 and UF-1500

Regardless of whether you need a setup in a smaller segment of your biochemistry lab or a backup solution for the UN-Series, the UC-3500 and UF-1500 offer fully automated urine analysis at a compact size.

UC-1000 and UF-1500

The UC-1000, our semi-automated chemistry analyser, is ideal for a lower sample volume and available as an integrated or stand-alone model. It can also be used as a back-up solution. If you would like a solution for smaller workloads that is still fully automated, our UF-1500 is 30% smaller than our flagship UF-5000 model but just as impressive. With proven fluorescence flow cytometry technology, the UF-1500 provides reliable, standardised results at a throughput of up to 60 samples an hour while reducing time-consuming manual steps.

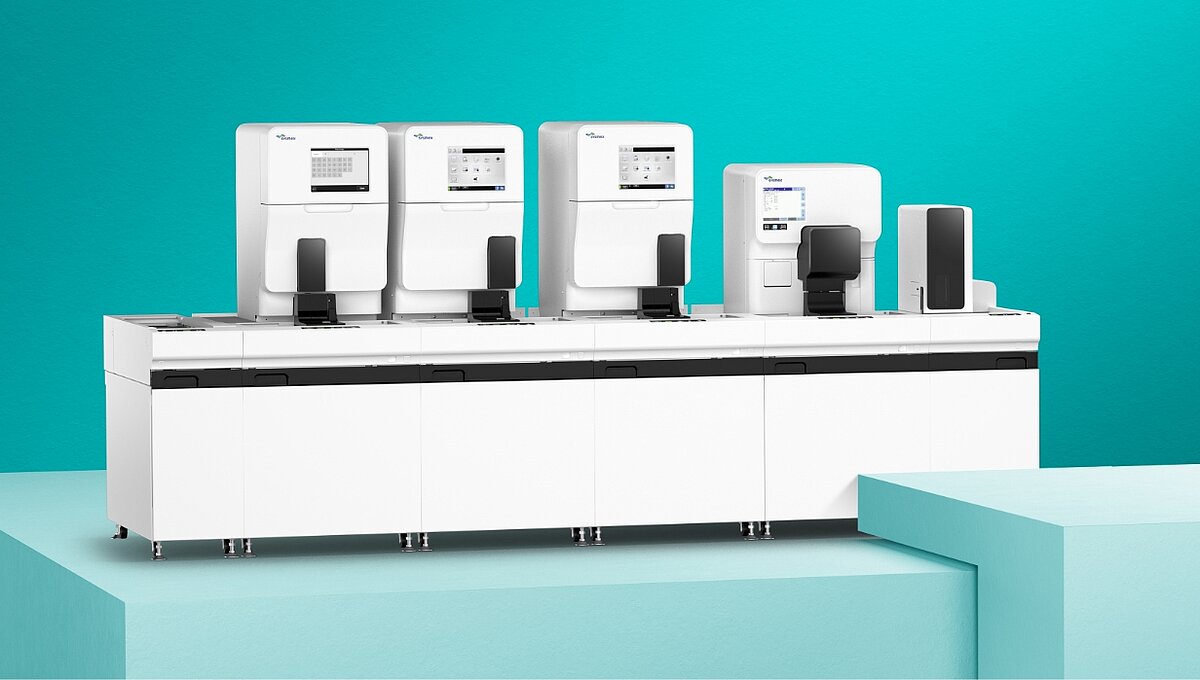

An even higher degree of automation for both microbiology and biochemistry labs UC-3500, UF-4000/UF-5000, UD-10 and TH-11

The next step for a fully automated urinalysis workplace combines our urine chemistry analyser, a UF-series particle analyser, a digital imaging device and our TH-11 Urine Sample Decapper Unit. Working together, they significantly increase turnaround time (TAT). This is especially due to the TH-11, which makes urine sample handling more convenient than ever before and is equally effective in both biochemistry and microbiology labs.
