CellaVision® DC-1 - Digital cell morphology
- Digital cell morphology imaging device for blood smears
- Connectivity that facilitates remote collaboration and validation of results
- High-quality images capture all cellular details
- Automate the analysis of WBCs, RBCs and PLTs

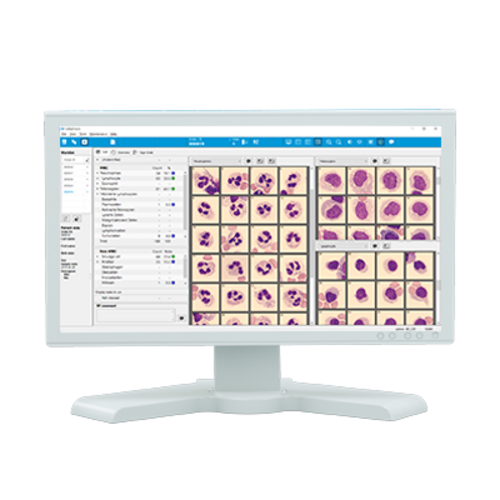

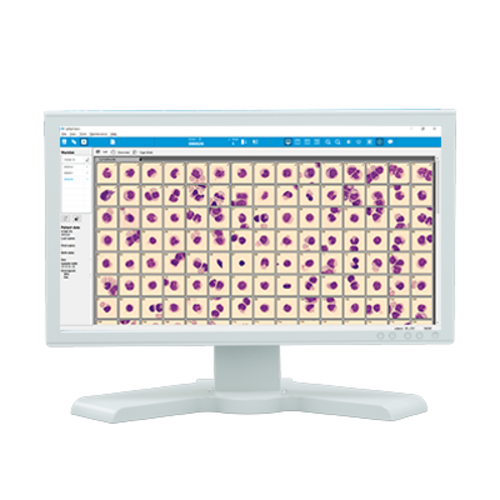

- Cell images can be viewed and compared side by side

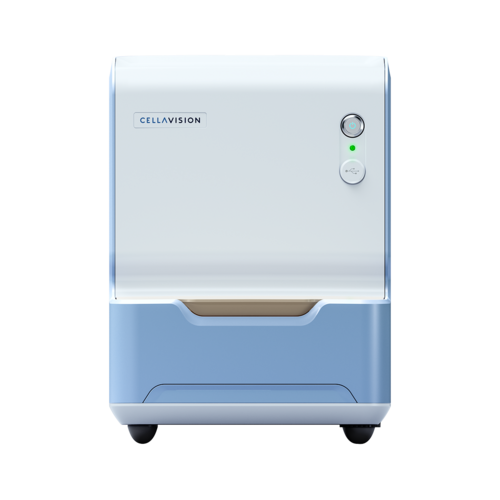

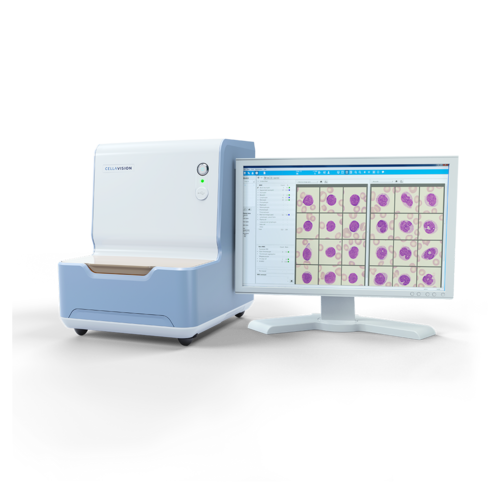

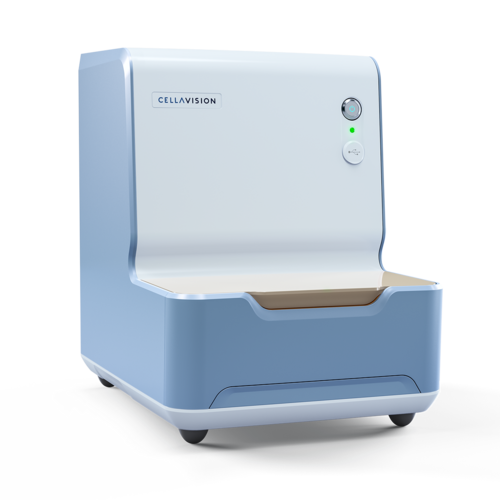

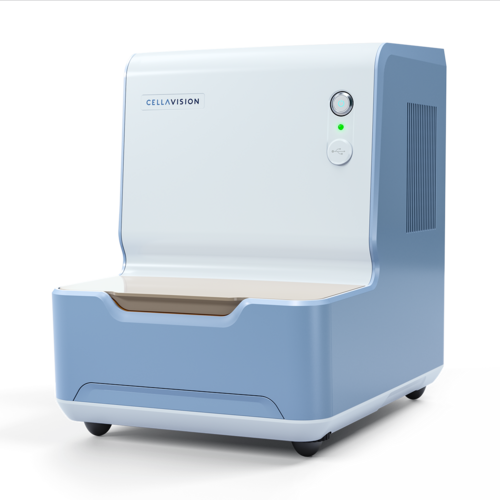

The CellaVision® DC-1 is a stand-alone haematology analyser that performs blood cell differentials. It offers a suitable solution for laboratories with small workloads. The analyser consists of an automated microscope, a high-quality digital camera and a computer system that uses artificial intelligence to locate, digitally capture and pre-classify cells from stained blood smears. WBC, RBC and PLT images are stored, together with differential results, in a database.
Smear Workflow
The RAL StainBox is a part of the Smear Workflow concept, which optimises the preparation of peripheral blood smears for automated digital morphology. It comprises the RAL SmearBox and RAL StainBox with methanol-free reagents, combined with the CellaVision® DC-1. The concept seamlessly covers the whole haematology workflow so that you can provide results with consistently high quality.
| Dimensions in mm (W x D x H) | 280 x 390 x 370 mm |
| Weight | 11.0 kg |
| Capacity | 1 slide |
| Immersion Oil | Manually |
| Analysis | 17 WBC classes, 6 RBC abnormalities, PLT estimation |
| Throughput | Up to 15 slides per hour (based on a 100 WBC differential, RBC morphology and PLT estimation) |
| Storage | Up to 1,500 slides in one database (unlimited on secondary storage) |
| Slide preparation | RAL SmearBox / StainBox |
