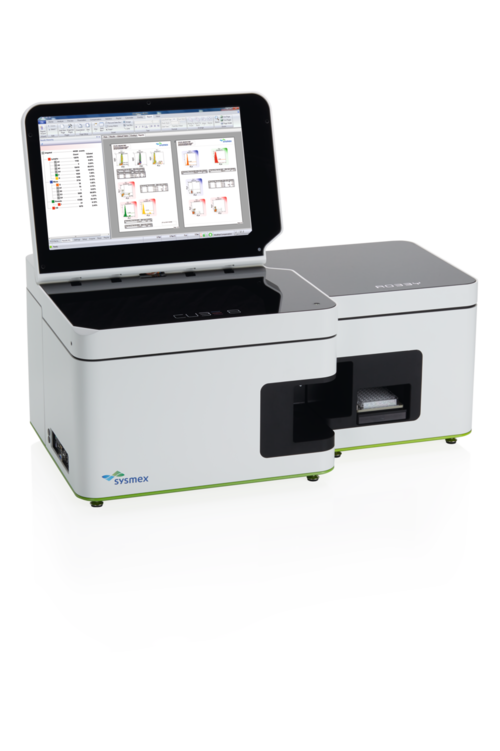

The CyFlow® Cube 8 is a compact flow cytometer for the analysis of single cells and microscopic particles with a high grade of integration. The CyFlow® Cube 8 offers the unique combination of a truly stand-alone system of a small footprint with a modular configuration concept with up to 6 colours. The easy-to-use CyFlow™ software provides control of the instrument, data acquisition, analysis and storage. The possibility of customised instrument settings facilitates switching between different applications. CyFlow® Cube 8 offers True Volumetric Absolute Counting (TVAC), which allows the display of particle concentrations for any subsets of cells without the need for reference beads, even if defined by a gate at a later time after the acquisition.

* Optional CyFlow® Robby 8 Autoloading Station for well plates and tubes

* Optional CyFlow® Sorter for closed, non-destructive cell and particle sorting with high purity

Technical Specifications

Light sources	Up to four light sources (three lasers + high-power UV LED) Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm Red laser: 25mW at 638nm, 40mW at 640nm Violet laser: 100mW at 405nm UV laser: 60mW at 375nm Green laser: 30mW at 532nm, 100mW at 532nm Yellow laser: 100mW at 561nm Orange laser: 50mW at 594nm High-power UV LED: 365nm
Optics	Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL6 Exchangeable optical filters
Flow system	Quartz flow cuvette for laminar sample transport and hydrodynamic focussing True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software	Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display Easy set-up of experimental templates (configuration files) Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions	Stand-alone instrument: W 500mm x H 370mm x D 470mm With Autoloading Station: W 840mm
CyFlow Cube 8 Sorter
General facts	Configurations with up to five optical parameters (up to three colours). Sterile sorting by closed fluidic system. Optional CyFlow Robby 8 Autoloading Station for well plates and tubes
Light sources	Up to two simultaneous light sources (lasers)> Blue laser: 50mW at 488nm, adjustable to 200mW at 488nm Red laser: 25mW at 638nm, 40mW at 640nm Violet laser: 100mW at 405nm UV laser: 60mW at 375nm Green laser: 30mW at 532nm, 100mW at 532nm Yellow laser: 100mW at 561nm Orange laser: 50mW at 594nm
Optics	Modular optical system with selected PMTs with integrated electronic preamplifier for FSC, SSC, FL1-FL3 Exchangeable optical filters
Flow system	Quartz flow cuvette for laminar sample transport and sorting process Completely closed and integrated fluidic system True Volumetric Absolute Counting (TVAC) based on mechanical volume measurement Computer-controlled precision syringe pump, speed continuously adjustable from 0-20 µL/s
Software	Windows™-based FCM software CyFlow for real-time data acquisition, real-time data analysis and real-time data display Easy set-up of experimental templates (configuration files) Flow Cytometry Standard (FCS) data format for storage of original and evaluated data
Dimensions	W 500mm x H 370mm x D 470mm (without sorting module)
