UF-1500

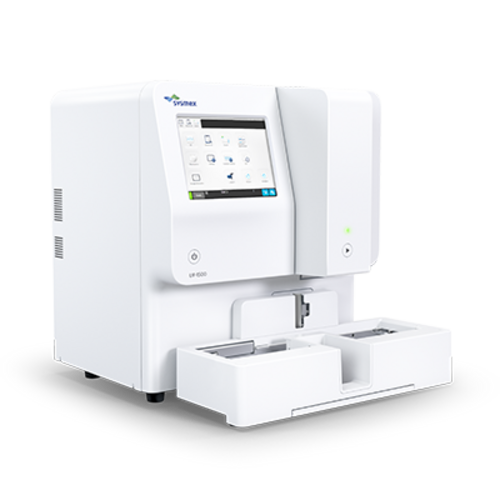

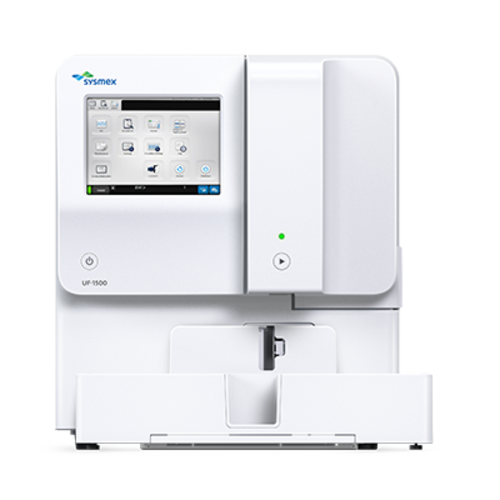

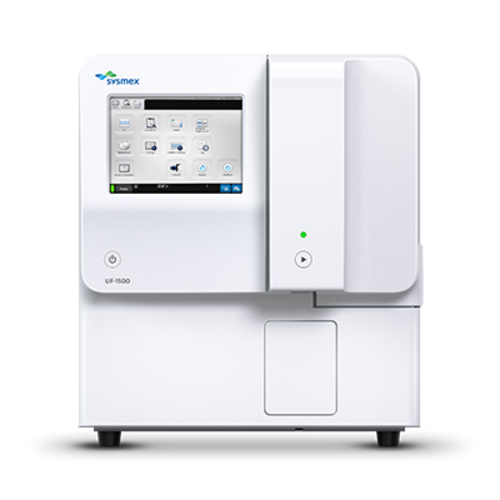

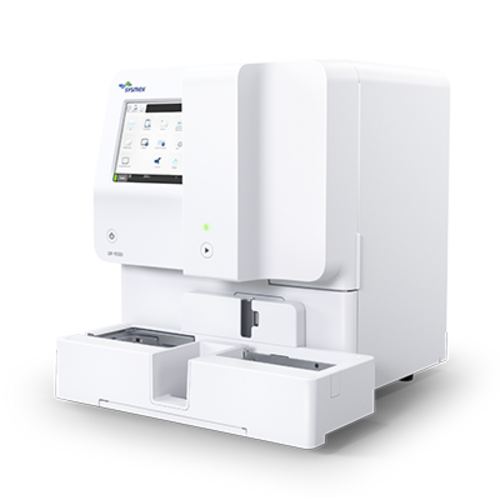

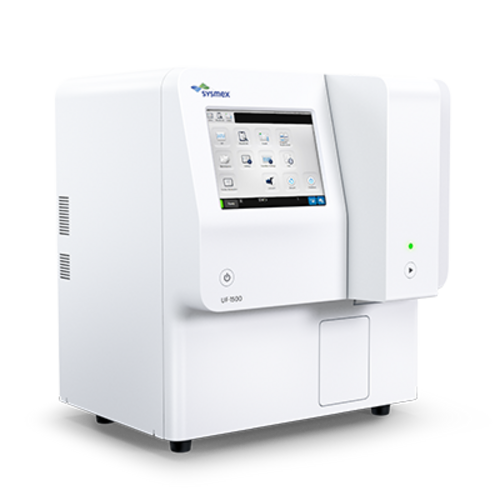

Proven technology, compact size: the UF-1500

As an ideal solution for small to medium sized labs, the Sysmex UF-1500 Fully Automated Urine Particle Analyser is roughly 30% smaller than our flagship UF-5000 model while delivering high-quality and reliable results using our proven fluorescence flow cytometry (FFC) technology.

The right choice for your workflow

Sysmex's FFC technology, along with automation features, barcode identification and modularity, make the UF-1500 an excellent option to streamline workflows and provide more accurate results. Choose Sysmex for your lab to take advantage of cutting-edge, versatile design based on proven technology, combined with unparalleled support.

Technical Specifications
Dimensions / weights
W x H x D [mm / kg
]
analyser: approx. 550 × 630 × 560/52
main unit (incl. SA-52): 630 × 630 × 626/60
pneumatic unit: 280 × 400 × 355/17
Technologies fluorescence flow cytometry with blue semi-conductor laser and hydrodynamic focussing in two different channels
conductometry
Parameters (urine)

Diagnostic
RBC, NL RBC, WBC, WBC Clumps, EC, Squa.EC, Non SEC, Tran.EC, RTEC, CAST, Hy. CAST, Path. CAST, BACT, X’TAL, YLC, SPERM, MUCUS

Research Use Only (RUO)
SRC, Atyp.C, Cond., Osmo., SF_TC, CW_TC, CB_TC, SF_OTHERS, CW_OTHERS, DEBRIS, RBC-P70FSC, RBC-FSC-DW, Large RBC, Small RBC, Lysed RBC

Throughput 60 samples/hour (max.)
Sampling volume 2 mL (sampler mode), 0.6 mL (STAT mode)
Aspiration volume 680 μL (sampler mode), 520 μL (STAT mode)
Sampler unit capacity 50 samples (entry area), 50 samples (exit area)
Interface (optional) U-WAM
Web application (optional) Caresphere™ XQC
