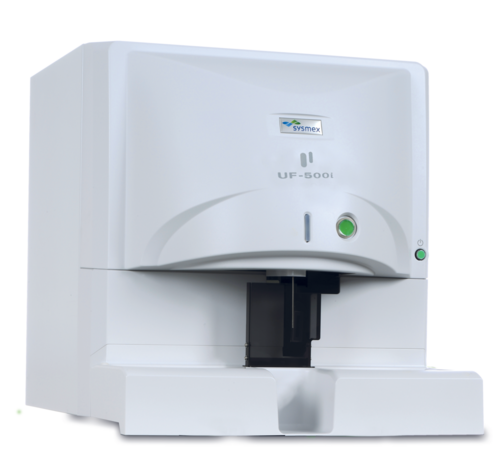

UF-500i

Our new UF-series of urinalysis devices is unique. Using fluorescence flow cytometry, the UF-500i offers two separate channels: one for bacteria and one for sediment particles. This means you can now detect possible urinary tract infections in about one minute instead of hours at a rate of up to 60 samples per hour. And with its other diagnostic indicators, you can easily indicate contaminations, inflammations, bacterial and mycotic infections.

You can improve your productivity levels thanks to negative sample avoidance, unattended walkaway operation and full automation. Of course, it’s all backed by Sysmex’s globally renowned service and support.

Sysmex is known around the world for its world-leading haematology analysers based on fluorescence flow cytometry. We have now successfully applied this best-in-class technology to urinalysis and body fluid analyses that need high quality results, even in clinically relevant low concentration ranges.

Our analysers offer greater clinical value and enhanced productivity. This translates into faster, more sensitive analysis for patients, and an improved cost-result ratio for users.

Technical Specifications
Technologies

fluorescence flow cytometry with diode laser and hydrodynamic focussing

conductometry

2 separate channels: 1 for bacteria, 1 for all sediment particles

Parameters

WBC, RBC, EC, CAST, BACT, SRC, YLC, SPERM, X’TAL, P.CAST, MUCUS,

conductivity, RBC info, UTI info

Throughput

normal mode: up to 60 samples/hour

special (high precision bacteria) mode: up to 45 samples/hour

Sample volumes

4 mL for sampler mode

1mL for manual mode

Data storage

5,000 samples (incl. graphics)

5,000 patients’ information

3,000 selective test orders

Quality control

24 QC files with 300 data points each

2-level control material UF II CONTROL in slightly and strongly

pathologic range

Interfaces

Windows® user interface

Host (Ethernet or serial)

graphic and/or line printer (USB)

bar code scanner (USB)

Options

rack samplers for 50 (5 x 10 or 10 x 5) sample tubes

incl. bar code reader for sampler mode

hand-held bar code reader for manual mode

printer (graphic and /or line printers)

Configurations

with work area management system sis-u

additional possibility of test strip reader connection to sis-u

Dimensions/weights

w x h x d [mm] / [kg]

580 x 615 x 710 / 75.5 (main unit with sampler)

305 x 85 x 345 / 8 (IPU: information-processing unit)
