XN-9100 Sorting & Archiving

The Sorting and Archiving configuration is best suited to labs with a high workload during routine hours with low to medium complexity order profiles and sample workflow. It's also great for labs with archiving and/or sorting needs.

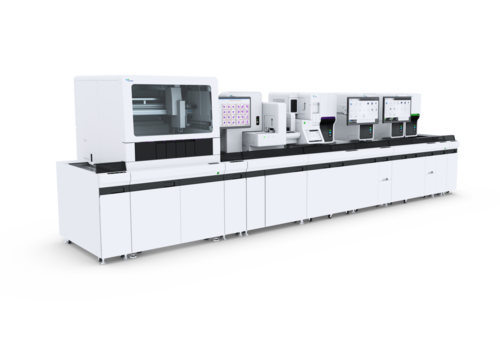

The XN-9100 consists of up to ten XN modules that you can tailor to your own laboratory needs. Sorting & Archiving is a flexible configuration. It consists of XN analysis modules, our SP-50 slide maker/stainer, the DI-60 digital imaging module and the TS-10 tube sorter at the end. It optimises workflows from cell counting via smear preparation to morphology analysis and sorts EDTA tubes intelligently as you need.

It can analyse both routine haematology testing and specialty samples depending on the clinical value applications on your analysis modules.

Samples that need a smear are processed automatically by the slide-maker/stainer, followed by digital imaging. Smears are of excellent quality and consistency

  • even with highly pathological samples
  • thanks to the use of an adaptive smear technique and RAL classic staining reagents,

Smears are only initiated if they offer additional diagnostic value – the analysis profile is extended automatically to include smear-making/staining and morphology analysis. You can also order it up front.

  • The tube sorter reduces turnaround time and manual sample handling significantly. After analysis, it rapidly delivers pre-sorted tubes for subsequent, dedicated work areas and tests such as HbA1c*, erythrocyte sedimentation rate (ESR*) or blood group testing.
  • To make best use of your space or when the available space is not enough for a linear set-up, alternative designs can be installed: Inner-L, Outer-L, Inner-U, Outer-U, Z


* only in certain countries

Technical Specifications
Measurement principles WBC DIFF/RET/PLT-F/WPC: Fluorescence Flow Cytometry
RBC/PLT: Hydrodynamically focussed impedance
HGB: Cyanide-free SLS haemoglobin
Throughput
From 2 modules of XN-10/20 in
combination with SP-50 (H mode):


from 200 samples/h in whole blood (WB) mode,
up to 40 samples/h in body fluid (BF) mode per module,
up to 30 slides/h in standard mode per module,
up to 75 slides/h with the optional high-throughput licence per module
Aspiration volume
XN module:
SP-50 module:

88 μL in whole blood (WB) mode and body fluid (BF) mode
70 μL for smear preparation in auto mode,
38 μL for smear preparation in manual mode
Analysis parameters
Whole Blood

With RET (optional)
With PLT-F (optional)
With WPC (optional)
XN Stem Cells licence:
Body Fluids with XN-BF
(optional)

WBC, NRBC%, NRBC#, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MicroR%, MacroR%, PDW, MPV,
P-LCR, PCT, NEUT%, NEUT#, LYMPH%, LYMPH#, MONO%, MONO#, EO%, EO#, BASO%, BASO#, IG%, IG#
RET%, RET#, IRF, LFR, MFR, HFR, RET-He, RBC-He, Delta-He, HYPO-He%, HYPER-He%, PLT-O
PLT-F, IPF, IPF#
Extended Inflammation Parameters licence: NEUT-GI, NEUT-RI, RE-LYMP%, RE-LYMP#, AS-LYMP%, AS-LYMP#
HPC%, HPC#
WBC-BF, RBC-BF, MN%, MN#, PMN%, PMN#, TC-BF#
Sampler unit capacity 25 racks (250 samples) – Start Yard (ST-40) capacity
Integrated optional module DI-60 for digital image analysis
Tube sorter TS-10
Tosoh HLC-723 G11* – automated glycohaemoglobin analyser
Interrliner* – automated ESR reader
Staining protocols (SP-50) May Grünwald – Giemsa, Wright – Giemsa, Wright
Data storage capacities
(XN module)

Results: 100,000 samples
Patient information: 10,000 records
QC files: 99 files (300 plots per file)
Reagent replacement history: 5,000 records
X-bar control (L-J control): 300 plots x 94 files
X-barM control: 300 plots x 5 files



Contacts
You have a question and would like to get in touch with our experts? We look forward to receiving your enquiry.

Sysmex Middle East FZ-LLC

Dubai Healthcare City

City Pharmacy Building C/P 72, Office 304

P.O. Box 505119 Dubai, U.A.E.

+971 4 4370515

+971 4 4370516

Documents

Product documents

Safety data sheets

Regulatory Documents

Regulatory documents, such as Instructions for Use, can be accessed with a valid My Sysmex login:

Go to My Sysmex

Explore more

XN-9100 Compact Integration

XN-9100 Compact Integration

XN-9100 – flexible and adaptable, ready to grow with you

Details
XN-9100 Maximum Workload

XN-9100 Maximum Workload

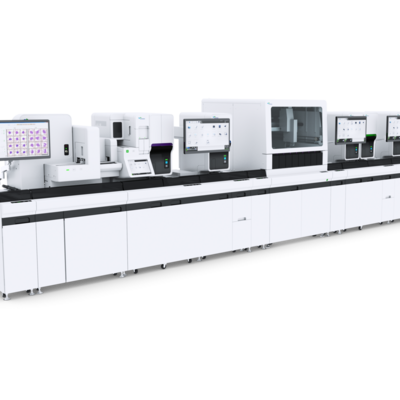

XN-9100 Maximum Workload – Two worlds, one solution: High-speed screening of your bulk load – expert analysis for the pathological samples
